Introduction: Trick devices in power electronic devices
Silicon-controlled rectifiers (SCRs), also referred to as thyristors, are semiconductor power devices with a four-layer three-way junction structure (PNPN). Because its introduction in the 1950s, SCRs have actually been widely made use of in commercial automation, power systems, home device control and other areas because of their high stand up to voltage, huge present bring ability, quick reaction and easy control. With the development of modern technology, SCRs have developed into lots of kinds, including unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions between these types are not only reflected in the framework and functioning principle, however also identify their applicability in different application circumstances. This article will start from a technological perspective, integrated with particular specifications, to deeply examine the primary differences and typical uses these 4 SCRs.
Unidirectional SCR: Standard and secure application core
Unidirectional SCR is the most standard and usual type of thyristor. Its structure is a four-layer three-junction PNPN arrangement, consisting of three electrodes: anode (A), cathode (K) and gateway (G). It only allows present to flow in one direction (from anode to cathode) and activates after eviction is triggered. When turned on, even if eviction signal is removed, as long as the anode current is greater than the holding current (typically much less than 100mA), the SCR remains on.

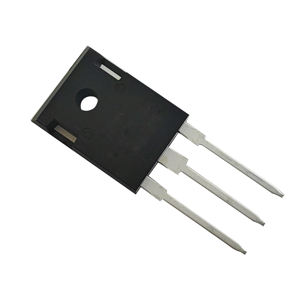

(Thyristor Rectifier)
Unidirectional SCR has strong voltage and existing resistance, with an ahead recurring optimal voltage (V DRM) of up to 6500V and a ranked on-state average present (ITAV) of as much as 5000A. Therefore, it is widely utilized in DC electric motor control, commercial heating systems, uninterruptible power supply (UPS) correction components, power conditioning tools and various other occasions that call for constant transmission and high power processing. Its benefits are straightforward framework, affordable and high integrity, and it is a core element of many traditional power control systems.
Bidirectional SCR (TRIAC): Perfect for a/c control
Unlike unidirectional SCR, bidirectional SCR, also known as TRIAC, can accomplish bidirectional conduction in both positive and adverse half cycles. This structure contains 2 anti-parallel SCRs, which enable TRIAC to be activated and activated at any time in the AC cycle without transforming the circuit connection approach. The balanced transmission voltage series of TRIAC is typically ± 400 ~ 800V, the maximum load current is about 100A, and the trigger current is less than 50mA.
As a result of the bidirectional transmission qualities of TRIAC, it is especially ideal for air conditioner dimming and rate control in household devices and consumer electronics. For example, tools such as lamp dimmers, fan controllers, and ac unit follower rate regulators all rely on TRIAC to achieve smooth power guideline. Furthermore, TRIAC also has a reduced driving power demand and is suitable for integrated design, so it has been extensively made use of in wise home systems and small home appliances. Although the power density and switching rate of TRIAC are not like those of new power tools, its inexpensive and hassle-free usage make it a vital gamer in the area of little and moderate power a/c control.
Entrance Turn-Off Thyristor (GTO): A high-performance rep of energetic control
Gateway Turn-Off Thyristor (GTO) is a high-performance power device established on the basis of typical SCR. Unlike average SCR, which can just be turned off passively, GTO can be shut off actively by using a negative pulse current to the gate, therefore achieving even more flexible control. This function makes GTO do well in systems that call for regular start-stop or fast response.
(Thyristor Rectifier)
The technological specifications of GTO reveal that it has extremely high power handling capability: the turn-off gain has to do with 4 ~ 5, the maximum operating voltage can reach 6000V, and the optimum operating current depends on 6000A. The turn-on time has to do with 1μs, and the turn-off time is 2 ~ 5μs. These performance indicators make GTO commonly made use of in high-power circumstances such as electrical engine grip systems, large inverters, commercial electric motor regularity conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is relatively complex and has high changing losses, its performance under high power and high dynamic reaction needs is still irreplaceable.
Light-controlled thyristor (LTT): A trustworthy option in the high-voltage seclusion environment
Light-controlled thyristor (LTT) uses optical signals rather than electrical signals to trigger transmission, which is its biggest feature that differentiates it from other sorts of SCRs. The optical trigger wavelength of LTT is normally in between 850nm and 950nm, the response time is gauged in split seconds, and the insulation degree can be as high as 100kV or over. This optoelectronic seclusion system significantly improves the system’s anti-electromagnetic interference ability and security.
LTT is mostly used in ultra-high voltage direct present transmission (UHVDC), power system relay security gadgets, electro-magnetic compatibility security in medical devices, and armed forces radar communication systems etc, which have exceptionally high demands for safety and security and security. For example, many converter terminals in China’s “West-to-East Power Transmission” task have adopted LTT-based converter valve components to guarantee secure procedure under extremely high voltage conditions. Some progressed LTTs can additionally be integrated with gate control to attain bidirectional conduction or turn-off functions, further expanding their application variety and making them an ideal selection for solving high-voltage and high-current control issues.
