1. Principles of Foam Generation and the Role in Lightweight Concrete Equipment
1.1 Concepts of Air Entrainment and Mobile Framework Formation

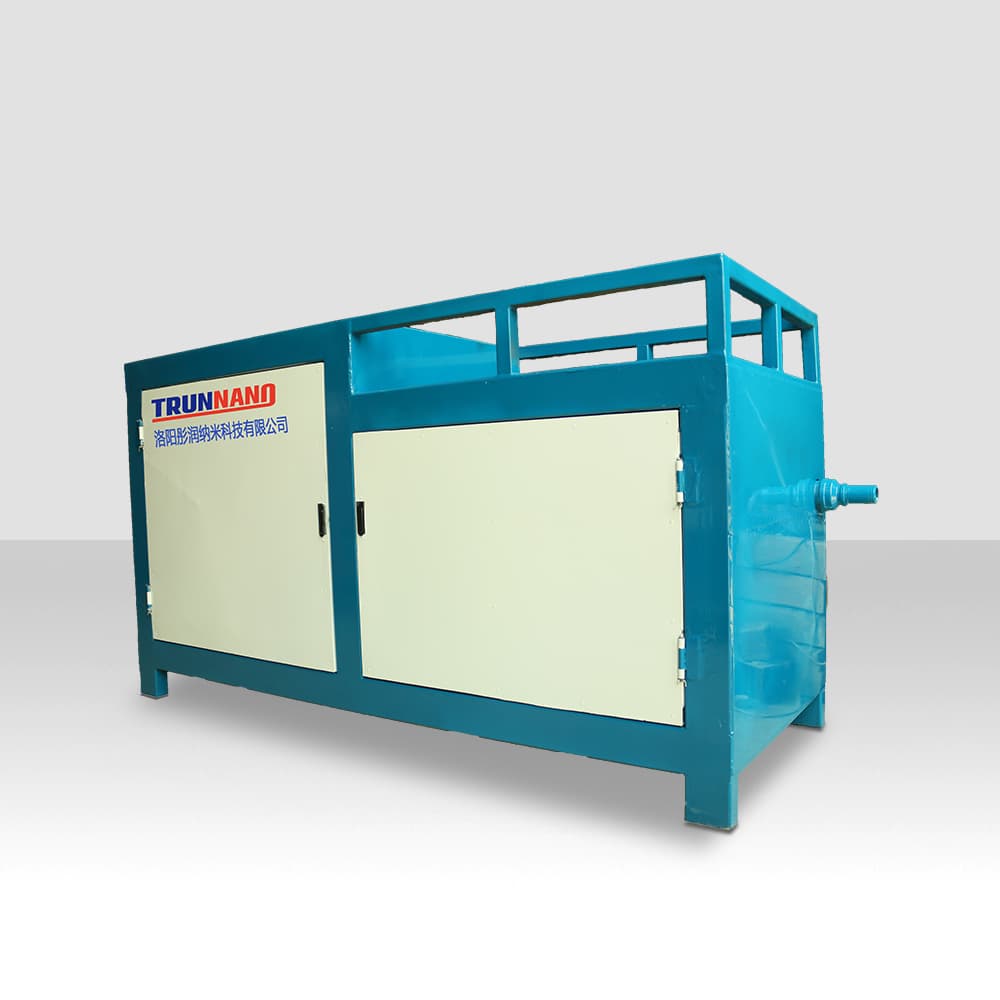

(Lightweight Concrete Foam Generators)
Light-weight concrete, a class of construction materials defined by minimized density and improved thermal insulation, depends basically on the regulated introduction of air or gas spaces within a cementitious matrix– a procedure referred to as frothing.
The creation of these consistently distributed, stable air cells is attained via the use of a specialized tool referred to as a foam generator, which creates penalty, microscale bubbles that are subsequently mixed into the concrete slurry.
These bubbles, normally ranging from 50 to 500 micrometers in size, come to be permanently entrained upon concrete hydration, causing a cellular concrete framework with considerably reduced device weight– typically between 300 kg/m three and 1,800 kg/m ³– contrasted to conventional concrete (~ 2,400 kg/m THREE).
The foam generator is not just a complementary device yet a vital design part that establishes the high quality, uniformity, and performance of the last lightweight concrete item.
The procedure begins with a fluid frothing agent, usually a protein-based or artificial surfactant service, which is presented right into the generator where it is mechanically or pneumatically spread right into a dense foam with high shear or compressed air injection.
The security and bubble size distribution of the created foam directly influence key product properties such as compressive stamina, thermal conductivity, and workability.
1.2 Category and Functional Systems of Foam Generators
Foam generators are extensively classified right into 3 primary kinds based on their operational concepts: low-pressure (or wet-film), high-pressure (or dynamic), and rotating (or centrifugal) systems.
Low-pressure generators make use of a porous medium– such as a great mesh, material, or ceramic plate– where compressed air is forced, developing bubbles as the lathering option streams over the surface.
This technique generates fairly big, less consistent bubbles and is generally made use of for lower-grade applications where accurate control is much less vital.
High-pressure systems, on the other hand, employ a nozzle-based design where a high-velocity stream of compressed air shears the foaming fluid into a fine, homogeneous foam with narrow bubble size distribution.
These systems supply exceptional control over foam density and stability, making them perfect for structural-grade light-weight concrete and precast applications.
( Lightweight Concrete Foam Generators)
Rotating foam generators make use of a spinning disk or drum that flings the foaming solution into a stream of air, creating bubbles via mechanical dispersion.
While much less accurate than high-pressure systems, rotary generators are valued for their robustness, simplicity of upkeep, and continuous outcome, appropriate for massive on-site pouring operations.
The selection of foam generator kind depends on project-specific demands, including preferred concrete thickness, manufacturing quantity, and performance specs.
2. Material Science Behind Foam Stability and Concrete Performance
2.1 Foaming Brokers and Interfacial Chemistry
The performance of a foam generator is inherently connected to the chemical structure and physical habits of the lathering representative.
Frothing agents are surfactants that reduce the surface area tension of water, making it possible for the formation of stable air-liquid user interfaces.
Protein-based agents, originated from hydrolyzed keratin or albumin, produce long lasting, flexible foam films with superb stability and are typically preferred in structural applications.
Artificial agents, such as alkyl sulfonates or ethoxylated alcohols, supply faster foam generation and reduced cost yet may create less stable bubbles under extended mixing or adverse ecological conditions.
The molecular structure of the surfactant determines the density and mechanical toughness of the lamellae (slim fluid movies) bordering each bubble, which have to withstand coalescence and water drainage throughout blending and treating.
Additives such as viscosity modifiers, stabilizers, and pH barriers are often integrated right into frothing solutions to enhance foam persistence and compatibility with concrete chemistry.
2.2 Impact of Foam Characteristics on Concrete Residence
The physical qualities of the produced foam– bubble dimension, dimension circulation, air material, and foam thickness– straight dictate the macroscopic actions of lightweight concrete.
Smaller sized, uniformly distributed bubbles enhance mechanical toughness by decreasing anxiety focus points and creating an extra uniform microstructure.
Conversely, bigger or uneven bubbles can serve as problems, reducing compressive strength and enhancing permeability.
Foam security is similarly critical; premature collapse or coalescence throughout mixing bring about non-uniform thickness, segregation, and lowered insulation performance.
The air-void system likewise affects thermal conductivity, with finer, closed-cell structures providing superior insulation as a result of entraped air’s reduced thermal diffusivity.
Additionally, the water material of the foam influences the water-cement ratio of the last mix, necessitating exact calibration to avoid compromising the cement matrix or delaying hydration.
Advanced foam generators currently include real-time tracking and comments systems to preserve consistent foam output, making sure reproducibility throughout sets.
3. Assimilation in Modern Construction and Industrial Applications
3.1 Architectural and Non-Structural Uses of Foamed Concrete
Lightweight concrete created by means of foam generators is employed across a wide range of building and construction applications, ranging from insulation panels and void loading to bearing walls and sidewalk systems.
In structure envelopes, frothed concrete offers outstanding thermal and acoustic insulation, contributing to energy-efficient designs and lowered a/c lots.
Its low thickness also lowers structural dead tons, permitting smaller sized structures and longer periods in skyscraper and bridge building.
In civil design, it is made use of for trench backfilling, tunneling, and incline stabilization, where its self-leveling and low-stress features avoid ground disturbance and improve safety.
Precast manufacturers make use of high-precision foam generators to create lightweight blocks, panels, and building components with tight dimensional resistances and regular high quality.
Furthermore, foamed concrete shows fundamental fire resistance as a result of its low thermal conductivity and lack of organic elements, making it appropriate for fire-rated settings up and passive fire defense systems.
3.2 Automation, Scalability, and On-Site Production Equipments
Modern building and construction needs quick, scalable, and dependable manufacturing of light-weight concrete, driving the combination of foam generators right into automated batching and pumping systems.
Completely automated plants can synchronize foam generation with concrete mixing, water application, and additive injection, making it possible for continuous production with minimal human intervention.
Mobile foam generator systems are progressively released on building websites, allowing for on-demand manufacture of foamed concrete straight at the point of usage, lowering transport costs and product waste.
These systems are usually furnished with electronic controls, remote monitoring, and information logging abilities to make certain conformity with design requirements and quality standards.
The scalability of foam generation modern technology– from small mobile units to industrial-scale systems– sustains its fostering in both established and arising markets, promoting sustainable structure methods worldwide.
4. Technical Improvements and Future Directions in Foam Generation
4.1 Smart Foam Generators and Real-Time Process Control
Emerging innovations in foam generator style concentrate on enhancing precision, effectiveness, and versatility via digitalization and sensor assimilation.
Smart foam generators outfitted with stress sensing units, circulation meters, and optical bubble analyzers can dynamically adjust air-to-liquid ratios and monitor foam high quality in real time.
Machine learning formulas are being explored to predict foam habits based on ecological conditions, basic material variations, and historical performance data.
Such advancements aim to minimize batch-to-batch irregularity and maximize material performance, specifically in high-stakes applications like nuclear shielding or offshore building and construction.
4.2 Sustainability, Environmental Influence, and Environment-friendly Material Assimilation
As the building and construction market approaches decarbonization, foam generators play a role in reducing the ecological impact of concrete.
By lowering material density, much less concrete is called for per unit quantity, straight reducing carbon monoxide two emissions related to concrete manufacturing.
In addition, lathered concrete can incorporate supplemental cementitious products (SCMs) such as fly ash, slag, or silica fume, enhancing sustainability without endangering efficiency.
Research is also underway to develop bio-based frothing representatives originated from eco-friendly resources, lessening reliance on petrochemical surfactants.
Future developments may consist of energy-efficient foam generation methods, assimilation with carbon capture modern technologies, and recyclable concrete solutions allowed by stable mobile structures.
In conclusion, the lightweight concrete foam generator is even more than a mechanical gadget– it is a crucial enabler of sophisticated material design in modern-day construction.
By exactly controlling the architecture of air gaps at the microscale, it changes conventional concrete right into a multifunctional, sustainable, and high-performance product.
As technology advances, foam generators will remain to drive development in building scientific research, facilities strength, and ecological stewardship.
