1. Product Principles and Crystal Chemistry
1.1 Composition and Polymorphic Framework
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic compound made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its outstanding firmness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures differing in piling sequences– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technologically relevant.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) result in a high melting factor (~ 2700 Ā° C), low thermal expansion (~ 4.0 Ć 10 ā»ā¶/ K), and excellent resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC does not have a native lustrous stage, adding to its security in oxidizing and corrosive atmospheres as much as 1600 Ā° C.
Its vast bandgap (2.3– 3.3 eV, depending on polytype) likewise enhances it with semiconductor homes, making it possible for twin use in architectural and digital applications.
1.2 Sintering Challenges and Densification Approaches
Pure SiC is incredibly hard to compress as a result of its covalent bonding and reduced self-diffusion coefficients, demanding making use of sintering help or sophisticated processing strategies.
Reaction-bonded SiC (RB-SiC) is generated by infiltrating permeable carbon preforms with liquified silicon, developing SiC in situ; this approach yields near-net-shape elements with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon ingredients to advertise densification at ~ 2000– 2200 Ā° C under inert atmosphere, accomplishing > 99% academic density and exceptional mechanical buildings.
Liquid-phase sintered SiC (LPS-SiC) employs oxide additives such as Al ā O ā– Y TWO O FOUR, creating a transient fluid that improves diffusion yet may decrease high-temperature toughness as a result of grain-boundary stages.
Warm pressing and spark plasma sintering (SPS) offer quick, pressure-assisted densification with fine microstructures, suitable for high-performance elements needing marginal grain growth.
2. Mechanical and Thermal Performance Characteristics
2.1 Strength, Solidity, and Put On Resistance
Silicon carbide porcelains show Vickers solidity values of 25– 30 GPa, 2nd just to ruby and cubic boron nitride among engineering materials.
Their flexural stamina generally ranges from 300 to 600 MPa, with crack sturdiness (K_IC) of 3– 5 MPa Ā· m Ā¹/ TWO– modest for ceramics but boosted with microstructural engineering such as whisker or fiber reinforcement.
The mix of high firmness and flexible modulus (~ 410 GPa) makes SiC extremely resistant to abrasive and erosive wear, exceeding tungsten carbide and hardened steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC parts demonstrate life span several times longer than conventional choices.
Its reduced density (~ 3.1 g/cm TWO) additional contributes to use resistance by minimizing inertial pressures in high-speed revolving parts.
2.2 Thermal Conductivity and Security
Among SiC’s most distinct features is its high thermal conductivity– varying from 80 to 120 W/(m Ā· K )for polycrystalline forms, and approximately 490 W/(m Ā· K) for single-crystal 4H-SiC– exceeding most metals other than copper and light weight aluminum.
This home makes it possible for efficient warmth dissipation in high-power digital substrates, brake discs, and warm exchanger elements.
Combined with reduced thermal development, SiC exhibits outstanding thermal shock resistance, evaluated by the R-parameter (Ļ(1– Ī½)k/ Ī±E), where high values suggest strength to quick temperature changes.

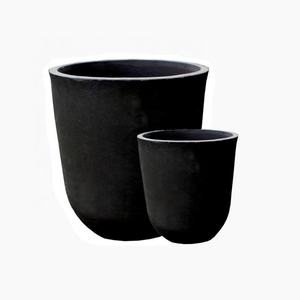

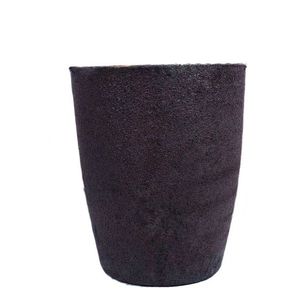

For example, SiC crucibles can be heated up from space temperature level to 1400 Ā° C in minutes without fracturing, a feat unattainable for alumina or zirconia in comparable problems.
Furthermore, SiC keeps strength up to 1400 Ā° C in inert environments, making it suitable for heater components, kiln furnishings, and aerospace parts subjected to severe thermal cycles.
3. Chemical Inertness and Deterioration Resistance
3.1 Actions in Oxidizing and Minimizing Environments
At temperatures below 800 Ā° C, SiC is extremely stable in both oxidizing and decreasing atmospheres.
Over 800 Ā° C in air, a protective silica (SiO ā) layer forms on the surface using oxidation (SiC + 3/2 O TWO ā SiO TWO + CO), which passivates the product and reduces additional deterioration.
Nevertheless, in water vapor-rich or high-velocity gas streams above 1200 Ā° C, this silica layer can volatilize as Si(OH)FOUR, resulting in sped up recession– a critical consideration in generator and combustion applications.
In reducing atmospheres or inert gases, SiC remains secure approximately its decay temperature level (~ 2700 Ā° C), without stage adjustments or strength loss.
This security makes it suitable for liquified metal handling, such as light weight aluminum or zinc crucibles, where it resists wetting and chemical strike much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is practically inert to all acids other than hydrofluoric acid (HF) and solid oxidizing acid blends (e.g., HF– HNO THREE).
It shows excellent resistance to alkalis up to 800 Ā° C, though long term exposure to thaw NaOH or KOH can trigger surface area etching via development of soluble silicates.
In liquified salt atmospheres– such as those in concentrated solar energy (CSP) or atomic power plants– SiC shows remarkable rust resistance contrasted to nickel-based superalloys.
This chemical effectiveness underpins its use in chemical procedure equipment, including valves, linings, and warmth exchanger tubes dealing with hostile media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Arising Frontiers
4.1 Established Utilizes in Power, Protection, and Production
Silicon carbide porcelains are essential to numerous high-value industrial systems.
In the energy sector, they serve as wear-resistant liners in coal gasifiers, parts in nuclear gas cladding (SiC/SiC compounds), and substrates for high-temperature strong oxide gas cells (SOFCs).
Protection applications consist of ballistic shield plates, where SiC’s high hardness-to-density ratio offers remarkable defense versus high-velocity projectiles contrasted to alumina or boron carbide at lower expense.
In manufacturing, SiC is made use of for accuracy bearings, semiconductor wafer dealing with components, and abrasive blasting nozzles because of its dimensional stability and purity.
Its use in electric automobile (EV) inverters as a semiconductor substratum is rapidly growing, driven by effectiveness gains from wide-bandgap electronic devices.
4.2 Next-Generation Dopes and Sustainability
Continuous study concentrates on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which exhibit pseudo-ductile behavior, boosted durability, and maintained stamina over 1200 Ā° C– ideal for jet engines and hypersonic lorry leading edges.
Additive production of SiC by means of binder jetting or stereolithography is progressing, enabling intricate geometries formerly unattainable via traditional developing techniques.
From a sustainability point of view, SiC’s durability minimizes substitute frequency and lifecycle discharges in commercial systems.
Recycling of SiC scrap from wafer slicing or grinding is being created through thermal and chemical healing processes to reclaim high-purity SiC powder.
As industries press towards greater performance, electrification, and extreme-environment procedure, silicon carbide-based porcelains will continue to be at the center of advanced materials engineering, bridging the gap between structural durability and practical flexibility.
