Discover the thorough guide to oil submersed transformers, consisting of oil immersed power transformers and oil submersed circulation transformers. Discover their functioning concepts, kinds, benefits, and progressing role in clever grids and renewable energy.
1. Intro to Oil Submersed Transformers
In the intricate web of our modern electrical grid, transformers play a vital function, quietly stepping voltage up and down to ensure power can be transferred successfully over cross countries and dispersed safely to our homes and markets. Amongst the different kinds readily available, the oil submersed transformer stands as a testimony to tested dependability and toughness. For decades, these workhorses have created the foundation of power systems worldwide.
An oil immersed transformer is a sort of electrical transformer that utilizes a specific protecting oil as both a coolant and a shielding tool. This design is predominantly utilized for tool to high-power applications, making it a foundation of electrical framework. This overview dives deep right into the globe of oil submersed power transformers and oil submersed circulation transformers, exploring their innovation, applications, and their developing function in an era of digitalization and renewable resource.
1.1 What is an Oil Immersed Transformer?
At its core, an oil immersed transformer contains a magnetic core and copper or light weight aluminum windings housed inside a sealed storage tank loaded with shielding oil. The primary function of the oil is twofold:
1. Insulation: The oil possesses high dielectric stamina, properly insulating the high-voltage windings from the transformer’s core and grounded tank. This stops brief circuits and electrical break downs.
2. Air conditioning: As the transformer runs, the windings generate considerable heat as a result of I ² R losses. The flowing oil absorbs this heat, convects it to the transformer’s storage tank wall surfaces, and dissipates it right into the surrounding air. Bigger devices typically include radiators or fins to increase the surface for a lot more efficient air conditioning.
This dual-purpose use of oil makes the oil immersed transformer extremely reliable and durable, efficient in handling high tons and withstanding short-term overloads much better than several dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these systems are oil submersed transformers, they serve distinctive functions within the power system network. Recognizing the difference is crucial.
An oil submersed power transformer is a heavyweight, usually used in transmission networks at generating stations and major substations. Their key function is to “step-up” the voltage produced at the power plant to incredibly high degrees (e.g., 138 kV, 230 kV, 500 kV and over) for efficient long-distance transmission, and to “step-down” the voltage at receiving substations for more circulation. They are identified by their really high power scores (usually going beyond 100 MVA), intricate construction, and on-load tap changers for voltage law.
An oil involved circulation transformer, on the other hand, carries out the final step in the power distribution chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it to the low voltages (e.g., 400/230 V) made use of by business and household customers. You generally discover them on utility poles (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have lower power ratings (normally as much as 2,500 kVA), and are made for optimal effectiveness at reduced, more consistent loads.

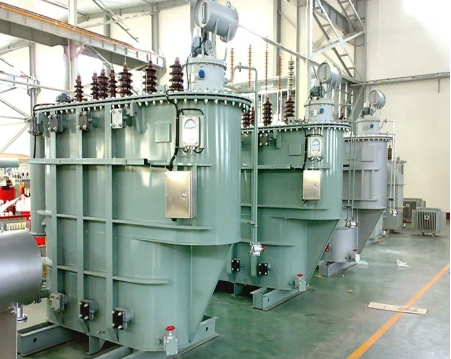

(Oil immersed power transformer)
2. Key Advantages of Oil Immersed Transformers
The enduring popularity of the oil immersed transformer is not unintended. It offers a collection of compelling benefits that make it the recommended choice for many demanding applications.
2.1 Superior Cooling and Overload Capacity
The remarkable thermal capacity of oil contrasted to air permits an oil submersed power transformer to manage and dissipate warm much more successfully. This converts to a greater overload capacity. During durations of peak electrical power need, an oil submersed transformer can manage momentary overloads without sustaining damages, an important function for preserving grid stability. The oil’s flow ensures even heat distribution, avoiding localized locations that can weaken insulation gradually.
2.2 Enhanced Insulation and Long Service Life
The mix of top quality mineral oil and thoroughly fertilized paper insulation develops a dielectric system of remarkable toughness. This durable insulation system safeguards the transformer from voltage surges and transients, adding to a functional life expectancy that can include 30-40 years or even more with correct maintenance. The sealed container likewise protects the inner parts from dampness, dirt, and other atmospheric pollutants.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil submersed transformer is often one of the most cost-effective choice. The products utilized– mineral oil, steel storage tank, and copper/aluminum windings– supply a beneficial equilibrium of performance and price. The high performance of these transformers, particularly at their rated load, results in lower power losses over their life time, leading to substantial expense financial savings for energy companies and huge commercial customers.
3. Warm Subjects and Future Trends
The globe of oil immersed transformers is not fixed. It is constantly developing to fulfill new obstacles and integrate with modern-day innovations.
3.1 Naturally Degradable and Fireproof Oils
Environmental and security issues are driving a considerable shift away from standard mineral oil. The marketplace is swiftly taking on oil immersed transformers loaded with eco-friendly esters (synthetic or natural). These oils use a higher fire point (making them K-class fireproof), are much less poisonous, and are conveniently biodegradable, considerably minimizing the environmental influence in instance of a leakage. This fad is making oil submersed distribution transformers more secure for installment in urban locations and ecologically delicate areas.
3.2 Combination with Smart Grids and IoT
The modern-day oil engaged power transformer is becoming a smart node in the smart grid. Sensors are being integrated to check essential parameters in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Spotting fault gases generated within the oil to anticipate incipient mistakes.
Temperature Level Surveillance: Tracking top-oil and hotspot temperatures.
Tons and Power Quality Surveillance.
This data, transferred by means of IoT (Web of Things) systems, makes it possible for anticipating upkeep, prevents unexpected interruptions, and enhances transformer utilization and life expectancy.
3.3 Sustaining the Renewable Resource Change
The worldwide promote renewables is producing new demand for oil submersed transformers. Large solar ranches and wind power installments call for robust oil immersed power transformers to tip up the generated voltage to transmission degrees. Moreover, the periodic nature of renewables places higher anxiety on grid parts, and the tested integrity and overload ability of oil submersed transformers make them perfect for this essential duty.
4. Option and Upkeep Ideal Practices
Picking the right transformer and maintaining it effectively is vital to a trustworthy power system.
4.1 How to Pick the Right Oil Immersed Transformer
Choosing between an oil immersed power transformer and an oil immersed distribution transformer depends upon the application. Secret factors to consider include:
1. Voltage Level and kVA Score: Suit the transformer’s specs to your system’s demands.
2. Application: Transmission substation, industrial plant, or commercial distribution.
3. Area: Indoor vs. outdoor, ecological problems, and fire safety and security laws (which might affect the option of insulating oil).
4. Efficiency Criteria: Adhere to local effectiveness criteria like DOE (United States) or EU CoC (Europe).
5. Budget: Take into consideration both the initial funding expense and the complete cost of possession, consisting of losses.

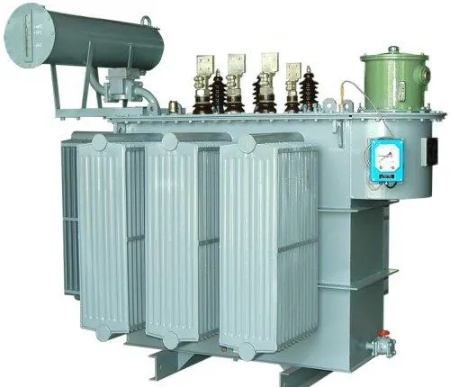

(Oil immersed distribution transformer)
4.2 Essential Upkeep for Longevity
Positive upkeep is vital for any type of oil submersed transformer. An extensive program must consist of:
1. Routine Oil Tasting and Testing: Periodic DGA and testing of dielectric toughness and moisture web content are the most effective means to assess the health of the transformer.
2. Bushing and Insulation Assessment: Aesthetic look for cracks, contamination, or leaks.
3. Faucet Changer Maintenance: Routine evaluation and maintenance of on-load or off-load tap changers.
4. Keep it Clean and Dry: Making certain the storage tank outside, radiators, and breathers are clean and useful.
The oil immersed transformer, in its duties as both a high-capacity oil immersed power transformer and a common oil immersed circulation transformer, continues to be an irreplaceable component of our global power infrastructure. Its tested design, coupled with recurring technologies in shielding liquids and digital surveillance, guarantees it will remain to be a dependable, effective, and smart option for powering our globe for years to come. As we build the grids of the future, integrating more renewables and electronic knowledge, the robust and adaptable oil submersed transformer will certainly go to the heart of it.
