Bearings are frequently called the “joints of industry.” Getting the choice right straight affects your devices’s reliability, service life, and upkeep expenses. Numerous bearing failures don’t come from poor quality– they originate from incorrect selections. Things like load estimation mistakes, overlooking rate limits, or choosing the incorrect lubrication method. These tiny errors can trigger devices to damage down early in its service life. This guide walks you via the whole choice process, giving designers and purchase specialists a clear course from evaluating working problems to verifying the best bearing design.
Component One: What You Need to Know Before Starting
Prior to you open any bearing catalog, ask on your own one inquiry: Exactly what does this maker require the bearing to do? The response lies in 5 essential areas:
1. Lots Features
Lots is the leading factor in birthing selection. You require to identify three things:
Direction: Is it radial load (perpendicular to the shaft), axial lots (alongside the shaft), or a combination of both?
Size: Is it light, modest, or heavy? Any influence lots?
Nature: Is the tons stable or transforming? Just how typically do influence loads occur and how solid are they?
Take a belt conveyor for instance. The bearings at the drive end handle radial loads from belt tension, the weight of the belt and rollers, plus the shaft setting up. When calculating, you need to consider various operating conditions– startup, regular running, braking– and use the worst-case situation for your design.
2. Speed Conditions
(bearings for steel mill)
Speed is one more crucial element affecting birthing life. According to fatigue life concept, bearing life has an inverse partnership with speed. For variable rate conditions, you require to determine the equivalent rate. Take a rotating kiln assistance roller– its rate might vary from 0.5 to 2.5 r/min. You ‘d require to weight the running time at each speed to get a comparable worth.
One thing to keep an eye out for: understanding just the optimum speed can ruin your lubrication approach. The lubricating substance you choose based upon full throttle might not develop a proper oil movie at reduced rates. Likewise, if your machine has long still durations, you should point out that– or else neighboring tools vibrations can trigger false brinelling damage.
3. Required Life Span
Birthing service life is normally revealed as L10h (the variety of hours that 90% of a bearing group will get to prior to fatigue spalling shows up). A common blunder is going for an overly lengthy life– as soon as L10h surpasses 100,000 hours, the bearing dimension obtains too large. It comes to be more challenging to lube, torque increases, and it ends up being extra sensitive to minimum tons. In the long run, it might fail for factors apart from fatigue.
4. Area Constraints
You should recognize your offered room restrictions from the start– shaft size variety, housing bore size, axial length limitations. When you know the matching shaft size and readily available room, you can swiftly narrow down your options.
5. Running Accuracy Demands
Many applications do just great with typical accuracy bearings. But for high-speed or high-precision devices like maker device spindles, you’ll need P5, P4, or perhaps higher grades. Simply remember that going for greater accuracy without a genuine need will increase expenses substantially. Suit the quality to your actual requirements.
Sequel: Matching Birthing Types to Functioning Issues
Once you have those parameters clear, the next step is to match the appropriate bearing type based upon load instructions, size, speed, and imbalance resistance.
1. Load Instructions: Radial, Axial, or Integrated?
This is the most basic filter. It can aim you to a couple of candidates right away:

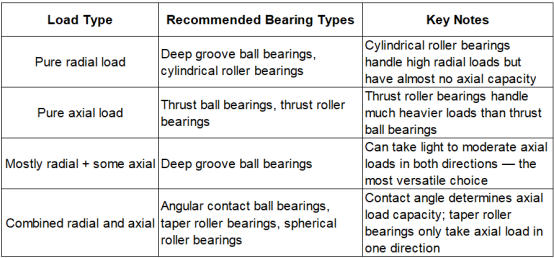

When the axial-to-radial lots ratio (Fa/Fr) modifications, your choice logic adjustments also. At low proportions, opt for deep groove ball bearings. At modest ratios, use small-contact-angle angular call bearings or taper roller bearings. At high ratios, you’ll require large-contact-angle bearings, or consider integrating a thrust bearing with a radial bearing.
( Radial)
2. Tons Dimension: Ball Bearings or Roller Bearings?
This is a traditional selection:
Light or moderate tons: Select ball bearings (deep groove or angular contact). The point get in touch with between spheres and raceways gives reduced rubbing, making them suitable for tool to broadband.
Heavy or impact tons: You need to make use of roller bearings (round, round, or taper). Line get in touch with between rollers and raceways supplies much higher lots capability and much better influence resistance.
3. Speed: Round Bearings for High Speed, Roller Bearings for Low
Usually speaking, sphere bearings have greater speed restrictions than roller bearings. For high-speed applications (over 1000 r/min), placed ball bearings at the top of your checklist. When you need the highest possible speed with pure radial tons, open deep groove round bearings are your best option. For incorporated loads at high speed, angular contact ball bearings are the way to go.
Round roller bearings, taper roller bearings, and needle bearings have reasonably reduced rate restrictions. They’re mainly suited for low-to-medium speed, heavy-load conditions.
4. Misalignment Resistance: Do You Need Self-Aligning?
This one commonly gets overlooked but it’s very essential. You must take into consideration self-aligning bearings when:
Bearing housing bores don’t align well
The shaft isn’t stiff enough and flexes during operation
The bearing period is lengthy and thermal expansion causes angular misalignment
You’re utilizing separate split housings (like cushion block bearings)
Round roller bearings and round bearings have concave outer ring raceways. This enables a particular quantity of angular misalignment between the internal and external rings without harmful edge stress and anxiety. They can compensate for both vibrant deflection and static setup errors.
On the various other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have really restricted self-aligning capacity. Even a little angular imbalance can cause anxiety focus at the roller finishes, bring about high side stress that dramatically reduce bearing life. Deep groove ball bearings do have some self-aligning capacity, yet the allowable angle is tiny– exceeding it will lower life too.
5. Axial Development Compensation: Fixed End or Drifting End?
Lengthy shafts increase and contract with temperature level adjustments during operation. That suggests you require to set up your bearing plan with one fixed end and one drifting end.
NU and N series cylindrical roller bearings have no flanges on the internal ring (or on one side). This lets the shaft action easily in the axial instructions relative to the housing– making them perfect as floating-end bearings. NJ and NUP series can provide axial positioning in one or both instructions, so they function well as fixed-end bearings. This configuration is very usual in gearboxes and electric motors.
Component 3: BMB Line Of Product at a Glance

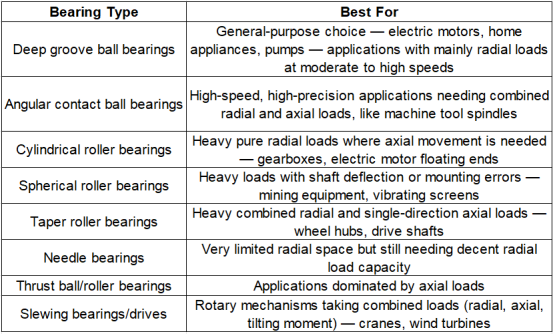

BMB uses a total variety of industrial bearings, covering all the significant types we have actually gone over. This quick recommendation table attaches the choice concepts over directly to particular item groups:
Part 4: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Criterion accuracy (P0) benefits the vast majority of basic machinery. For precision devices like maker tool spindles or aerospace parts, you’ll require P5 or greater. Tighter precision indicates tighter dimensional tolerances and far better running precision– but likewise greater expenses.
2. Interior Clearance and Preload
Bearings need to preserve appropriate interior clearance after setup. Too much clearance brings about resonance and sound. Too little, and thermal expansion can create the bearing to take. In special cases like equipment device spindles, preload (applying adverse clearance) is used to enhance system rigidness and rotational accuracy.
3. Lubricant Choice
Lubrication is a make-or-break aspect for bearing life. Oil works for most moderate-speed and temperature level applications– it’s basic to seal and can run maintenance-free for extended periods. Oil (oil bath, oil haze, jet lubrication) is much better for high-speed or high-temperature problems, as it dissipates heat more effectively. When choosing a lubricant, examine the rate element (ndm value). Don’t simply choose based on optimum rate– the oil you select may not develop a correct movie at reduced speeds.
4. Sealing Program
Select the seal kind based on your environment: contact seals maintain dirt out well however add some rubbing; non-contact seals help broadband however use less defense versus contamination; open bearings count on exterior securing systems.
Component 5: Life Computation– From Theory to Method
( or Combined Basic Filter Table)
At the end of the day, you require to validate whether your selected bearing will really meet the expected service life. This is where basic rating life calculation can be found in.
The standard rating life L10 formula (ISO 281 criterion):
For ball bearings: L10 = (C/P) TWO × (10 SIX/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: standard dynamic load score (kN)– located in the product catalog
P: comparable dynamic lots (kN)– takes both radial and axial loads right into account
The comparable vibrant load P is determined as: P = X · Fr + Y · Fa
Fr is the radial lots, Fa is the axial tons
X and Y are coefficients that depend on birthing type and the Fa/Fr proportion– examine the directory for these values
For even more demanding conditions, you can apply modification aspects: Ln = a1 × a2 × a3 × L10
a1 is the reliability factor (a1 = 1 for 90% integrity, concerning 0.21 for 99%)
a2 is the material variable (top quality bearing steel can get to 1.5 to 2)
a3 is the operating conditions element (great lubrication and sanitation can give 2 to 3)
With this estimation, engineers can confirm that the selected bearing satisfies the required life span. It likewise assists contrast several choices and make data-driven choices.
This guide has actually walked you with the complete choice course– from assessing working conditions, to matching the right bearing kind, to verifying life expectancy. Recognizing and applying this method will certainly help you make exact, efficient, and economical bearing choices across a large range of industrial applications.
