1. Material Principles and Architectural Quality
1.1 Crystal Chemistry and Polymorphism

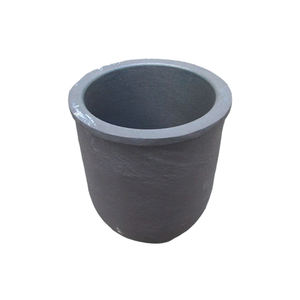

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms organized in a tetrahedral lattice, developing among the most thermally and chemically durable products recognized.
It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal structures being most relevant for high-temperature applications.
The strong Si– C bonds, with bond energy exceeding 300 kJ/mol, confer outstanding hardness, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is liked due to its capability to maintain architectural stability under extreme thermal slopes and corrosive molten environments.
Unlike oxide ceramics, SiC does not go through turbulent phase shifts as much as its sublimation factor (~ 2700 ° C), making it perfect for continual procedure over 1600 ° C.
1.2 Thermal and Mechanical Performance
A defining attribute of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which promotes consistent heat distribution and minimizes thermal tension throughout quick heating or cooling.
This residential or commercial property contrasts greatly with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are susceptible to breaking under thermal shock.
SiC likewise shows outstanding mechanical strength at elevated temperatures, keeping over 80% of its room-temperature flexural strength (approximately 400 MPa) even at 1400 ° C.
Its reduced coefficient of thermal development (~ 4.0 × 10 ⁻⁶/ K) additionally improves resistance to thermal shock, an essential factor in repeated biking between ambient and operational temperatures.
Furthermore, SiC demonstrates superior wear and abrasion resistance, making sure lengthy service life in atmospheres involving mechanical handling or unstable thaw circulation.
2. Manufacturing Techniques and Microstructural Control

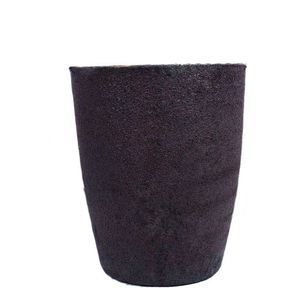

( Silicon Carbide Crucibles)
2.1 Sintering Strategies and Densification Approaches
Industrial SiC crucibles are largely made with pressureless sintering, reaction bonding, or warm pressing, each offering distinctive advantages in cost, pureness, and performance.
Pressureless sintering includes condensing great SiC powder with sintering aids such as boron and carbon, adhered to by high-temperature treatment (2000– 2200 ° C )in inert environment to achieve near-theoretical thickness.
This approach returns high-purity, high-strength crucibles suitable for semiconductor and progressed alloy handling.
Reaction-bonded SiC (RBSC) is created by penetrating a porous carbon preform with molten silicon, which reacts to create β-SiC sitting, leading to a compound of SiC and recurring silicon.
While slightly lower in thermal conductivity due to metal silicon incorporations, RBSC supplies excellent dimensional stability and lower manufacturing price, making it preferred for massive commercial usage.
Hot-pressed SiC, though extra expensive, supplies the greatest density and pureness, reserved for ultra-demanding applications such as single-crystal growth.
2.2 Surface Area High Quality and Geometric Precision
Post-sintering machining, including grinding and lapping, makes sure accurate dimensional resistances and smooth inner surface areas that decrease nucleation sites and decrease contamination threat.
Surface area roughness is thoroughly controlled to stop melt bond and facilitate very easy launch of solidified materials.
Crucible geometry– such as wall thickness, taper angle, and lower curvature– is enhanced to stabilize thermal mass, architectural stamina, and compatibility with heating system burner.
Customized designs accommodate particular thaw quantities, heating profiles, and product reactivity, guaranteeing optimal efficiency across varied commercial procedures.
Advanced quality control, including X-ray diffraction, scanning electron microscopy, and ultrasonic testing, verifies microstructural homogeneity and lack of problems like pores or splits.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Aggressive Atmospheres
SiC crucibles show extraordinary resistance to chemical assault by molten metals, slags, and non-oxidizing salts, outshining conventional graphite and oxide porcelains.
They are secure in contact with molten aluminum, copper, silver, and their alloys, withstanding wetting and dissolution as a result of reduced interfacial energy and formation of safety surface oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles prevent metal contamination that can weaken electronic homes.
Nevertheless, under very oxidizing problems or in the visibility of alkaline changes, SiC can oxidize to develop silica (SiO TWO), which might respond further to form low-melting-point silicates.
As a result, SiC is finest fit for neutral or lowering ambiences, where its stability is made the most of.
3.2 Limitations and Compatibility Considerations
Despite its toughness, SiC is not widely inert; it responds with certain molten materials, particularly iron-group metals (Fe, Ni, Carbon monoxide) at heats with carburization and dissolution processes.
In molten steel processing, SiC crucibles deteriorate rapidly and are therefore avoided.
Likewise, antacids and alkaline planet metals (e.g., Li, Na, Ca) can minimize SiC, launching carbon and creating silicides, restricting their usage in battery material synthesis or reactive steel casting.
For liquified glass and ceramics, SiC is generally compatible but might introduce trace silicon right into highly delicate optical or digital glasses.
Comprehending these material-specific communications is important for picking the suitable crucible kind and guaranteeing procedure purity and crucible durability.
4. Industrial Applications and Technological Evolution
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are indispensable in the production of multicrystalline and monocrystalline silicon ingots for solar cells, where they stand up to prolonged exposure to molten silicon at ~ 1420 ° C.
Their thermal security ensures consistent crystallization and minimizes dislocation thickness, directly affecting solar efficiency.
In factories, SiC crucibles are made use of for melting non-ferrous steels such as light weight aluminum and brass, providing longer life span and minimized dross development compared to clay-graphite options.
They are also employed in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of sophisticated porcelains and intermetallic compounds.
4.2 Future Fads and Advanced Product Integration
Emerging applications include using SiC crucibles in next-generation nuclear products screening and molten salt reactors, where their resistance to radiation and molten fluorides is being assessed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O TWO) are being applied to SiC surface areas to even more boost chemical inertness and protect against silicon diffusion in ultra-high-purity processes.
Additive production of SiC components making use of binder jetting or stereolithography is under growth, promising facility geometries and fast prototyping for specialized crucible layouts.
As demand grows for energy-efficient, resilient, and contamination-free high-temperature handling, silicon carbide crucibles will stay a keystone innovation in sophisticated materials making.
In conclusion, silicon carbide crucibles represent a critical allowing element in high-temperature commercial and clinical processes.
Their unparalleled mix of thermal stability, mechanical strength, and chemical resistance makes them the material of choice for applications where performance and reliability are extremely important.
