1. Product Foundations and Collaborating Style
1.1 Innate Residences of Constituent Phases

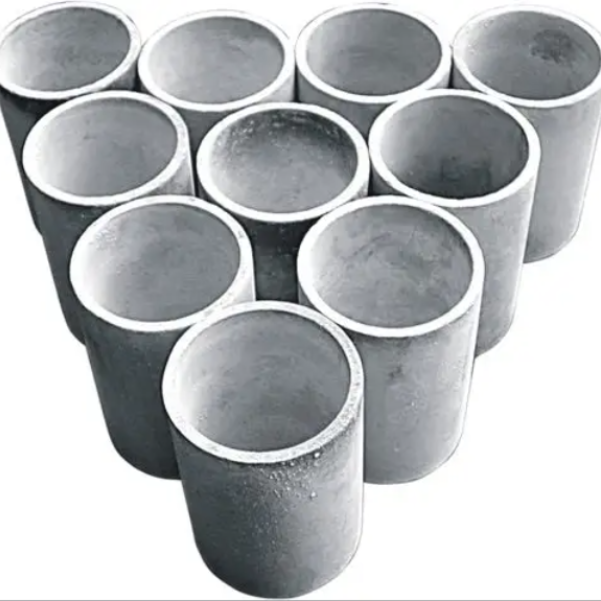

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si two N FOUR) and silicon carbide (SiC) are both covalently bonded, non-oxide ceramics renowned for their remarkable performance in high-temperature, corrosive, and mechanically requiring settings.
Silicon nitride shows impressive crack sturdiness, thermal shock resistance, and creep stability as a result of its unique microstructure composed of elongated β-Si three N ₄ grains that allow split deflection and bridging mechanisms.
It preserves strength up to 1400 ° C and has a relatively reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), minimizing thermal anxieties throughout quick temperature level adjustments.
In contrast, silicon carbide supplies exceptional firmness, thermal conductivity (up to 120– 150 W/(m · K )for single crystals), oxidation resistance, and chemical inertness, making it suitable for rough and radiative warmth dissipation applications.
Its broad bandgap (~ 3.3 eV for 4H-SiC) likewise confers excellent electrical insulation and radiation tolerance, helpful in nuclear and semiconductor contexts.
When combined right into a composite, these products display corresponding actions: Si six N four boosts sturdiness and damages resistance, while SiC improves thermal administration and wear resistance.
The resulting crossbreed ceramic achieves an equilibrium unattainable by either stage alone, creating a high-performance structural material customized for severe solution problems.
1.2 Compound Style and Microstructural Engineering
The design of Si six N ₄– SiC compounds entails specific control over stage circulation, grain morphology, and interfacial bonding to optimize collaborating results.
Generally, SiC is introduced as great particulate support (ranging from submicron to 1 µm) within a Si two N ₄ matrix, although functionally rated or layered styles are likewise discovered for specialized applications.
Throughout sintering– normally via gas-pressure sintering (GENERAL PRACTITIONER) or warm pushing– SiC fragments influence the nucleation and development kinetics of β-Si five N four grains, commonly promoting finer and more evenly oriented microstructures.
This improvement boosts mechanical homogeneity and decreases imperfection dimension, contributing to better toughness and dependability.
Interfacial compatibility in between the two phases is important; since both are covalent ceramics with comparable crystallographic proportion and thermal expansion actions, they develop systematic or semi-coherent boundaries that resist debonding under tons.
Ingredients such as yttria (Y TWO O FOUR) and alumina (Al ₂ O SIX) are made use of as sintering aids to promote liquid-phase densification of Si six N ₄ without compromising the stability of SiC.
Nevertheless, extreme second stages can deteriorate high-temperature performance, so structure and handling must be optimized to decrease lustrous grain boundary movies.
2. Handling Strategies and Densification Obstacles
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Preparation and Shaping Approaches
Top Notch Si Two N ₄– SiC composites begin with uniform mixing of ultrafine, high-purity powders making use of damp sphere milling, attrition milling, or ultrasonic dispersion in natural or liquid media.
Attaining consistent dispersion is essential to avoid heap of SiC, which can work as stress concentrators and decrease fracture strength.
Binders and dispersants are added to stabilize suspensions for shaping strategies such as slip spreading, tape spreading, or shot molding, relying on the desired component geometry.
Environment-friendly bodies are after that meticulously dried out and debound to eliminate organics before sintering, a procedure requiring controlled heating prices to avoid splitting or warping.
For near-net-shape production, additive methods like binder jetting or stereolithography are emerging, allowing complex geometries previously unachievable with conventional ceramic processing.
These approaches call for customized feedstocks with maximized rheology and green toughness, usually including polymer-derived ceramics or photosensitive materials filled with composite powders.
2.2 Sintering Mechanisms and Phase Stability
Densification of Si Four N FOUR– SiC composites is testing as a result of the solid covalent bonding and limited self-diffusion of nitrogen and carbon at sensible temperatures.
Liquid-phase sintering utilizing rare-earth or alkaline earth oxides (e.g., Y TWO O THREE, MgO) decreases the eutectic temperature and improves mass transportation via a short-term silicate melt.
Under gas pressure (normally 1– 10 MPa N TWO), this thaw facilitates rearrangement, solution-precipitation, and last densification while reducing decomposition of Si four N FOUR.
The presence of SiC influences viscosity and wettability of the fluid stage, possibly altering grain development anisotropy and last texture.
Post-sintering warmth treatments might be related to crystallize residual amorphous stages at grain boundaries, boosting high-temperature mechanical properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are routinely made use of to verify phase purity, absence of undesirable additional phases (e.g., Si two N ₂ O), and consistent microstructure.
3. Mechanical and Thermal Performance Under Lots
3.1 Toughness, Durability, and Exhaustion Resistance
Si Three N ₄– SiC composites demonstrate superior mechanical performance compared to monolithic porcelains, with flexural staminas surpassing 800 MPa and fracture sturdiness worths getting to 7– 9 MPa · m ¹/ ².
The strengthening result of SiC fragments hampers misplacement motion and split propagation, while the elongated Si two N four grains remain to give toughening through pull-out and linking systems.
This dual-toughening technique results in a material extremely immune to effect, thermal biking, and mechanical fatigue– important for rotating elements and structural aspects in aerospace and energy systems.
Creep resistance continues to be superb as much as 1300 ° C, credited to the security of the covalent network and lessened grain boundary sliding when amorphous phases are decreased.
Solidity values typically range from 16 to 19 Grade point average, providing exceptional wear and erosion resistance in abrasive environments such as sand-laden circulations or gliding contacts.
3.2 Thermal Management and Ecological Resilience
The enhancement of SiC considerably boosts the thermal conductivity of the composite, typically increasing that of pure Si six N ₄ (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) relying on SiC material and microstructure.
This enhanced heat transfer capacity allows for a lot more efficient thermal monitoring in parts revealed to extreme local home heating, such as burning linings or plasma-facing parts.
The composite maintains dimensional stability under high thermal slopes, resisting spallation and breaking due to matched thermal development and high thermal shock criterion (R-value).
Oxidation resistance is an additional key advantage; SiC develops a safety silica (SiO TWO) layer upon exposure to oxygen at elevated temperature levels, which further densifies and secures surface area problems.
This passive layer shields both SiC and Si ₃ N ₄ (which likewise oxidizes to SiO ₂ and N ₂), ensuring long-lasting longevity in air, steam, or burning environments.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Energy, and Industrial Solution
Si Six N ₄– SiC compounds are progressively deployed in next-generation gas generators, where they make it possible for greater running temperature levels, improved gas performance, and reduced cooling demands.
Components such as generator blades, combustor liners, and nozzle overview vanes take advantage of the product’s capacity to endure thermal biking and mechanical loading without substantial deterioration.
In nuclear reactors, particularly high-temperature gas-cooled reactors (HTGRs), these compounds act as fuel cladding or architectural assistances because of their neutron irradiation resistance and fission item retention capacity.
In industrial settings, they are made use of in molten metal handling, kiln furniture, and wear-resistant nozzles and bearings, where standard steels would certainly fail too soon.
Their lightweight nature (thickness ~ 3.2 g/cm FIVE) additionally makes them eye-catching for aerospace propulsion and hypersonic lorry components subject to aerothermal home heating.
4.2 Advanced Production and Multifunctional Integration
Emerging study focuses on creating functionally graded Si six N ₄– SiC structures, where structure varies spatially to enhance thermal, mechanical, or electromagnetic homes across a solitary element.
Hybrid systems incorporating CMC (ceramic matrix composite) architectures with fiber reinforcement (e.g., SiC_f/ SiC– Si ₃ N FOUR) press the limits of damage tolerance and strain-to-failure.
Additive manufacturing of these compounds allows topology-optimized warm exchangers, microreactors, and regenerative air conditioning networks with interior latticework frameworks unreachable via machining.
Furthermore, their integral dielectric buildings and thermal security make them candidates for radar-transparent radomes and antenna windows in high-speed systems.
As needs grow for products that execute reliably under severe thermomechanical loads, Si two N FOUR– SiC compounds stand for a pivotal innovation in ceramic design, combining toughness with capability in a solitary, sustainable platform.
Finally, silicon nitride– silicon carbide composite ceramics exhibit the power of materials-by-design, leveraging the toughness of 2 sophisticated porcelains to develop a crossbreed system capable of prospering in the most extreme operational environments.
Their proceeded development will play a main function in advancing clean power, aerospace, and commercial technologies in the 21st century.
