1. Architectural Attributes and Unique Bonding Nature
1.1 Crystal Style and Layered Atomic Plan

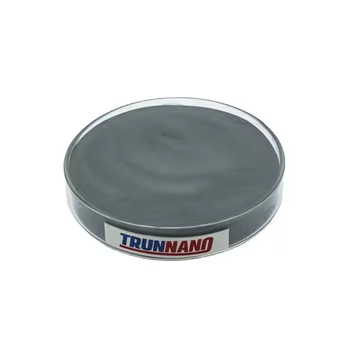

(Ti₃AlC₂ powder)
Ti three AlC two belongs to a distinct course of layered ternary porcelains known as MAX phases, where “M” signifies an early change metal, “A” represents an A-group (mainly IIIA or IVA) component, and “X” means carbon and/or nitrogen.
Its hexagonal crystal structure (area team P6 THREE/ mmc) consists of rotating layers of edge-sharing Ti ₆ C octahedra and aluminum atoms prepared in a nanolaminate fashion: Ti– C– Ti– Al– Ti– C– Ti, forming a 312-type MAX stage.
This purchased piling lead to solid covalent Ti– C bonds within the change steel carbide layers, while the Al atoms reside in the A-layer, contributing metallic-like bonding qualities.
The mix of covalent, ionic, and metal bonding enhances Ti ₃ AlC ₂ with an uncommon crossbreed of ceramic and metal buildings, differentiating it from standard monolithic ceramics such as alumina or silicon carbide.
High-resolution electron microscopy discloses atomically sharp interfaces in between layers, which facilitate anisotropic physical actions and one-of-a-kind contortion devices under stress.
This layered architecture is crucial to its damages tolerance, allowing systems such as kink-band formation, delamination, and basic aircraft slip– uncommon in weak porcelains.
1.2 Synthesis and Powder Morphology Control
Ti three AlC â‚‚ powder is usually synthesized through solid-state response courses, including carbothermal decrease, warm pushing, or trigger plasma sintering (SPS), beginning with essential or compound precursors such as Ti, Al, and carbon black or TiC.
A typical response path is: 3Ti + Al + 2C → Ti Four AlC ₂, conducted under inert ambience at temperature levels between 1200 ° C and 1500 ° C to stop aluminum evaporation and oxide development.
To obtain fine, phase-pure powders, exact stoichiometric control, expanded milling times, and optimized home heating accounts are essential to reduce completing phases like TiC, TiAl, or Ti Two AlC.
Mechanical alloying followed by annealing is extensively used to boost reactivity and homogeneity at the nanoscale.
The resulting powder morphology– varying from angular micron-sized particles to plate-like crystallites– relies on handling parameters and post-synthesis grinding.
Platelet-shaped fragments reflect the inherent anisotropy of the crystal structure, with larger measurements along the basic aircrafts and slim stacking in the c-axis direction.
Advanced characterization by means of X-ray diffraction (XRD), scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDS) makes sure stage pureness, stoichiometry, and particle size distribution ideal for downstream applications.
2. Mechanical and Useful Characteristic
2.1 Damage Tolerance and Machinability

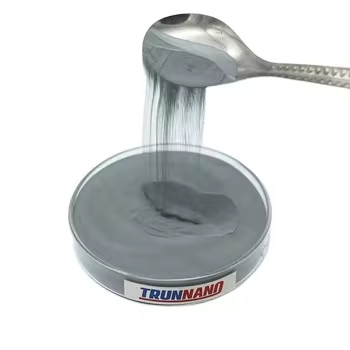

( Ti₃AlC₂ powder)
One of one of the most impressive functions of Ti six AlC two powder is its outstanding damages tolerance, a residential or commercial property seldom located in traditional ceramics.
Unlike fragile materials that fracture catastrophically under lots, Ti two AlC â‚‚ exhibits pseudo-ductility through devices such as microcrack deflection, grain pull-out, and delamination along weak Al-layer interfaces.
This allows the product to absorb energy before failure, leading to greater crack sturdiness– normally ranging from 7 to 10 MPa · m ¹/ ²– contrasted to
