Intro to Light Weight Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic material that has actually gotten extensive acknowledgment for its extraordinary thermal conductivity, electric insulation, and mechanical security at elevated temperature levels. With a hexagonal wurtzite crystal framework, AlN exhibits an one-of-a-kind mix of residential or commercial properties that make it the most excellent substrate material for applications in electronics, optoelectronics, power modules, and high-temperature settings. Its capacity to efficiently dissipate heat while preserving outstanding dielectric toughness placements AlN as a premium option to typical ceramic substrates such as alumina and beryllium oxide. This post explores the fundamental features of light weight aluminum nitride porcelains, looks into fabrication strategies, and highlights its important functions throughout innovative technological domain names.

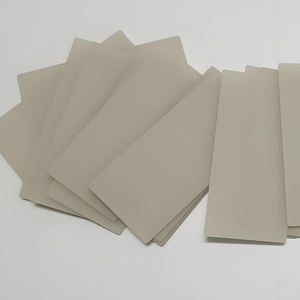

(Aluminum Nitride Ceramics)
Crystal Structure and Fundamental Characteristic
The performance of aluminum nitride as a substratum product is mainly dictated by its crystalline structure and intrinsic physical homes. AlN adopts a wurtzite-type lattice composed of rotating light weight aluminum and nitrogen atoms, which contributes to its high thermal conductivity– typically going beyond 180 W/(m · K), with some high-purity samples achieving over 320 W/(m · K). This worth dramatically goes beyond those of other widely used ceramic products, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal efficiency, AlN has a large bandgap of about 6.2 eV, resulting in excellent electrical insulation residential or commercial properties also at heats. It additionally demonstrates low thermal development (CTE ≈ 4.5 × 10 ⁻⁶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimum suit for semiconductor tool product packaging. Additionally, AlN exhibits high chemical inertness and resistance to thaw steels, enhancing its suitability for extreme environments. These combined qualities develop AlN as a prominent prospect for high-power electronic substrates and thermally handled systems.
Construction and Sintering Technologies
Producing premium aluminum nitride porcelains calls for specific powder synthesis and sintering strategies to attain thick microstructures with marginal contaminations. Because of its covalent bonding nature, AlN does not quickly densify with traditional pressureless sintering. As a result, sintering aids such as yttrium oxide (Y ₂ O THREE), calcium oxide (CaO), or unusual earth components are generally included in promote liquid-phase sintering and improve grain border diffusion.
The construction procedure usually begins with the carbothermal decrease of aluminum oxide in a nitrogen environment to synthesize AlN powders. These powders are then crushed, shaped by means of techniques like tape casting or injection molding, and sintered at temperature levels in between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Warm pushing or stimulate plasma sintering (SPS) can additionally enhance thickness and thermal conductivity by decreasing porosity and promoting grain placement. Advanced additive manufacturing strategies are also being explored to fabricate complex-shaped AlN elements with tailored thermal administration capacities.
Application in Electronic Packaging and Power Modules
Among the most noticeable uses light weight aluminum nitride porcelains remains in electronic packaging, specifically for high-power devices such as shielded gateway bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power densities raise in modern-day electronic devices, effective heat dissipation becomes essential to guarantee integrity and durability. AlN substratums give an ideal option by integrating high thermal conductivity with superb electric isolation, avoiding short circuits and thermal runaway conditions.
Furthermore, AlN-based direct bound copper (DBC) and active metal brazed (AMB) substrates are increasingly utilized in power module layouts for electrical automobiles, renewable resource inverters, and commercial electric motor drives. Contrasted to standard alumina or silicon nitride substratums, AlN supplies faster heat transfer and much better compatibility with silicon chip coefficients of thermal expansion, thereby lowering mechanical stress and enhancing general system efficiency. Ongoing research aims to boost the bonding stamina and metallization techniques on AlN surface areas to additional broaden its application range.
Use in Optoelectronic and High-Temperature Tools
Past electronic product packaging, light weight aluminum nitride porcelains play a crucial function in optoelectronic and high-temperature applications because of their openness to ultraviolet (UV) radiation and thermal stability. AlN is commonly made use of as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, especially in applications needing sanitation, sensing, and optical interaction. Its vast bandgap and reduced absorption coefficient in the UV array make it an ideal candidate for sustaining aluminum gallium nitride (AlGaN)-based heterostructures.
In addition, AlN’s capacity to function reliably at temperature levels exceeding 1000 ° C makes it ideal for use in sensors, thermoelectric generators, and components exposed to extreme thermal lots. In aerospace and defense industries, AlN-based sensing unit plans are employed in jet engine surveillance systems and high-temperature control units where conventional products would fail. Continual innovations in thin-film deposition and epitaxial growth methods are broadening the possibility of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Ecological Security and Long-Term Dependability
An essential consideration for any kind of substrate material is its lasting reliability under functional stresses. Light weight aluminum nitride shows remarkable ecological stability contrasted to lots of other ceramics. It is very resistant to deterioration from acids, alkalis, and molten steels, ensuring longevity in hostile chemical atmospheres. However, AlN is prone to hydrolysis when subjected to dampness at raised temperature levels, which can degrade its surface and reduce thermal performance.
To minimize this problem, safety coverings such as silicon nitride (Si six N FOUR), light weight aluminum oxide, or polymer-based encapsulation layers are usually related to improve wetness resistance. Additionally, mindful sealing and product packaging approaches are implemented during tool setting up to preserve the integrity of AlN substratums throughout their life span. As ecological regulations become much more strict, the safe nature of AlN also positions it as a preferred alternative to beryllium oxide, which postures health threats throughout handling and disposal.
Final thought
Light weight aluminum nitride porcelains stand for a class of advanced products uniquely suited to attend to the expanding needs for efficient thermal management and electric insulation in high-performance digital and optoelectronic systems. Their extraordinary thermal conductivity, chemical stability, and compatibility with semiconductor technologies make them the most optimal substrate product for a vast array of applications– from automotive power modules to deep UV LEDs and high-temperature sensors. As fabrication modern technologies continue to evolve and economical manufacturing methods mature, the fostering of AlN substratums is expected to increase significantly, driving advancement in next-generation electronic and photonic devices.
