1. Crystallography and Polymorphism of Titanium Dioxide
1.1 Anatase, Rutile, and Brookite: Structural and Digital Differences

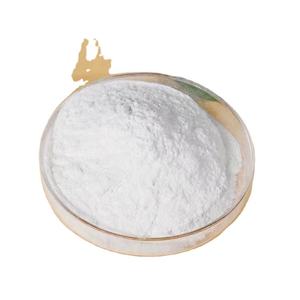

( Titanium Dioxide)
Titanium dioxide (TiO TWO) is a normally happening metal oxide that exists in 3 main crystalline forms: rutile, anatase, and brookite, each displaying distinct atomic setups and digital residential properties in spite of sharing the very same chemical formula.
Rutile, one of the most thermodynamically steady phase, includes a tetragonal crystal structure where titanium atoms are octahedrally coordinated by oxygen atoms in a dense, straight chain arrangement along the c-axis, causing high refractive index and superb chemical stability.
Anatase, likewise tetragonal yet with a more open framework, possesses corner- and edge-sharing TiO ₆ octahedra, leading to a higher surface power and higher photocatalytic task as a result of boosted cost service provider mobility and decreased electron-hole recombination prices.
Brookite, the least usual and most difficult to manufacture phase, embraces an orthorhombic structure with intricate octahedral tilting, and while less examined, it shows intermediate homes between anatase and rutile with emerging rate of interest in hybrid systems.
The bandgap powers of these phases differ slightly: rutile has a bandgap of around 3.0 eV, anatase around 3.2 eV, and brookite regarding 3.3 eV, affecting their light absorption attributes and suitability for specific photochemical applications.
Stage security is temperature-dependent; anatase commonly transforms irreversibly to rutile over 600– 800 ° C, a change that has to be regulated in high-temperature processing to preserve preferred functional homes.
1.2 Issue Chemistry and Doping Methods
The useful versatility of TiO two emerges not only from its intrinsic crystallography yet likewise from its capacity to accommodate factor defects and dopants that change its digital framework.
Oxygen openings and titanium interstitials act as n-type benefactors, increasing electrical conductivity and creating mid-gap states that can influence optical absorption and catalytic activity.
Managed doping with metal cations (e.g., Fe SIX âº, Cr Three âº, V FOUR âº) or non-metal anions (e.g., N, S, C) narrows the bandgap by introducing contamination degrees, making it possible for visible-light activation– an essential improvement for solar-driven applications.
For example, nitrogen doping changes lattice oxygen sites, producing localized states above the valence band that enable excitation by photons with wavelengths as much as 550 nm, substantially expanding the functional portion of the solar spectrum.
These adjustments are essential for conquering TiO two’s key restriction: its vast bandgap restricts photoactivity to the ultraviolet area, which makes up only around 4– 5% of case sunshine.

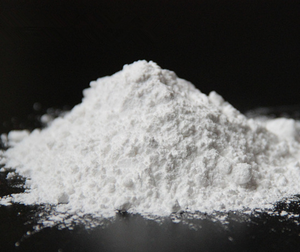

( Titanium Dioxide)
2. Synthesis Approaches and Morphological Control
2.1 Conventional and Advanced Manufacture Techniques
Titanium dioxide can be synthesized through a selection of techniques, each supplying different levels of control over phase purity, particle size, and morphology.
The sulfate and chloride (chlorination) processes are large-scale industrial routes utilized primarily for pigment production, including the food digestion of ilmenite or titanium slag followed by hydrolysis or oxidation to generate great TiO two powders.
For functional applications, wet-chemical techniques such as sol-gel handling, hydrothermal synthesis, and solvothermal paths are liked because of their capacity to produce nanostructured materials with high surface and tunable crystallinity.
Sol-gel synthesis, starting from titanium alkoxides like titanium isopropoxide, allows specific stoichiometric control and the formation of thin films, pillars, or nanoparticles with hydrolysis and polycondensation reactions.
Hydrothermal approaches make it possible for the growth of distinct nanostructures– such as nanotubes, nanorods, and ordered microspheres– by controlling temperature, pressure, and pH in aqueous environments, commonly utilizing mineralizers like NaOH to advertise anisotropic growth.
2.2 Nanostructuring and Heterojunction Design
The performance of TiO â‚‚ in photocatalysis and energy conversion is very depending on morphology.
One-dimensional nanostructures, such as nanotubes formed by anodization of titanium steel, supply straight electron transportation pathways and large surface-to-volume ratios, improving cost splitting up efficiency.
Two-dimensional nanosheets, specifically those exposing high-energy facets in anatase, exhibit superior sensitivity because of a higher thickness of undercoordinated titanium atoms that function as active sites for redox reactions.
To even more enhance efficiency, TiO two is commonly integrated into heterojunction systems with other semiconductors (e.g., g-C ₃ N ₄, CdS, WO TWO) or conductive assistances like graphene and carbon nanotubes.
These composites help with spatial splitting up of photogenerated electrons and openings, decrease recombination losses, and prolong light absorption right into the noticeable array with sensitization or band placement results.
3. Functional Qualities and Surface Area Sensitivity
3.1 Photocatalytic Mechanisms and Ecological Applications
The most popular property of TiO â‚‚ is its photocatalytic activity under UV irradiation, which enables the degradation of organic pollutants, microbial inactivation, and air and water filtration.
Upon photon absorption, electrons are excited from the valence band to the conduction band, leaving behind openings that are powerful oxidizing agents.
These charge providers react with surface-adsorbed water and oxygen to generate responsive oxygen types (ROS) such as hydroxyl radicals (- OH), superoxide anions (- O â‚‚ â»), and hydrogen peroxide (H TWO O TWO), which non-selectively oxidize organic contaminants right into CO â‚‚, H TWO O, and mineral acids.
This device is made use of in self-cleaning surface areas, where TiO TWO-coated glass or floor tiles break down organic dirt and biofilms under sunshine, and in wastewater therapy systems targeting dyes, pharmaceuticals, and endocrine disruptors.
Furthermore, TiO TWO-based photocatalysts are being developed for air filtration, eliminating volatile natural substances (VOCs) and nitrogen oxides (NOâ‚“) from interior and metropolitan settings.
3.2 Optical Scattering and Pigment Capability
Beyond its responsive homes, TiO â‚‚ is the most extensively utilized white pigment worldwide because of its extraordinary refractive index (~ 2.7 for rutile), which enables high opacity and illumination in paints, finishes, plastics, paper, and cosmetics.
The pigment functions by scattering visible light properly; when bit dimension is enhanced to about half the wavelength of light (~ 200– 300 nm), Mie spreading is optimized, causing remarkable hiding power.
Surface therapies with silica, alumina, or natural coatings are applied to improve dispersion, decrease photocatalytic activity (to avoid deterioration of the host matrix), and improve sturdiness in outside applications.
In sunscreens, nano-sized TiO â‚‚ provides broad-spectrum UV protection by scattering and taking in hazardous UVA and UVB radiation while continuing to be transparent in the visible variety, providing a physical obstacle without the dangers connected with some organic UV filters.
4. Emerging Applications in Energy and Smart Products
4.1 Function in Solar Power Conversion and Storage
Titanium dioxide plays a pivotal function in renewable resource technologies, most notably in dye-sensitized solar cells (DSSCs) and perovskite solar cells (PSCs).
In DSSCs, a mesoporous film of nanocrystalline anatase functions as an electron-transport layer, approving photoexcited electrons from a dye sensitizer and performing them to the external circuit, while its wide bandgap ensures marginal parasitical absorption.
In PSCs, TiO two functions as the electron-selective get in touch with, assisting in cost extraction and enhancing device security, although research study is recurring to replace it with much less photoactive options to boost durability.
TiO â‚‚ is likewise discovered in photoelectrochemical (PEC) water splitting systems, where it functions as a photoanode to oxidize water right into oxygen, protons, and electrons under UV light, adding to green hydrogen manufacturing.
4.2 Combination into Smart Coatings and Biomedical Devices
Cutting-edge applications consist of clever home windows with self-cleaning and anti-fogging abilities, where TiO â‚‚ finishings respond to light and humidity to maintain transparency and hygiene.
In biomedicine, TiO â‚‚ is investigated for biosensing, medicine shipment, and antimicrobial implants due to its biocompatibility, security, and photo-triggered sensitivity.
For instance, TiO two nanotubes expanded on titanium implants can promote osteointegration while giving localized antibacterial activity under light exposure.
In summary, titanium dioxide exemplifies the convergence of basic materials scientific research with sensible technical technology.
Its distinct combination of optical, digital, and surface chemical homes allows applications ranging from day-to-day consumer products to innovative environmental and power systems.
As study developments in nanostructuring, doping, and composite design, TiO two remains to evolve as a foundation product in sustainable and clever technologies.
