1. Make-up and Structural Properties of Fused Quartz
1.1 Amorphous Network and Thermal Security

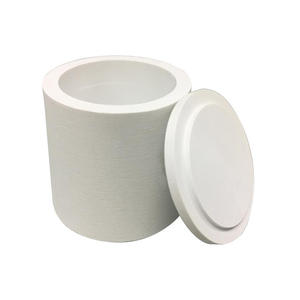

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from merged silica, an artificial form of silicon dioxide (SiO ₂) stemmed from the melting of all-natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, integrated silica has an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts outstanding thermal shock resistance and dimensional stability under fast temperature adjustments.
This disordered atomic framework protects against bosom along crystallographic airplanes, making fused silica much less vulnerable to cracking throughout thermal cycling compared to polycrystalline porcelains.
The product exhibits a reduced coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), one of the most affordable among design products, allowing it to withstand extreme thermal gradients without fracturing– an essential residential or commercial property in semiconductor and solar battery manufacturing.
Merged silica also keeps exceptional chemical inertness versus a lot of acids, liquified steels, and slags, although it can be slowly etched by hydrofluoric acid and warm phosphoric acid.
Its high conditioning point (~ 1600– 1730 ° C, depending upon pureness and OH content) enables sustained operation at elevated temperature levels needed for crystal growth and metal refining procedures.
1.2 Pureness Grading and Micronutrient Control
The performance of quartz crucibles is highly dependent on chemical pureness, especially the concentration of metal impurities such as iron, sodium, potassium, light weight aluminum, and titanium.
Even trace quantities (parts per million degree) of these contaminants can migrate into liquified silicon during crystal growth, weakening the electrical buildings of the resulting semiconductor material.
High-purity qualities made use of in electronics manufacturing normally consist of over 99.95% SiO TWO, with alkali steel oxides limited to less than 10 ppm and change steels listed below 1 ppm.
Contaminations originate from raw quartz feedstock or processing tools and are decreased with careful choice of mineral resources and purification methods like acid leaching and flotation.
Furthermore, the hydroxyl (OH) content in merged silica impacts its thermomechanical habits; high-OH types supply much better UV transmission yet lower thermal security, while low-OH versions are chosen for high-temperature applications as a result of decreased bubble development.

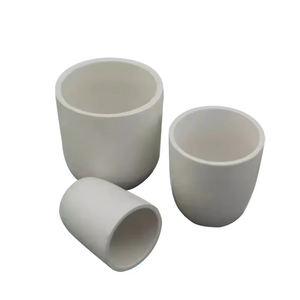

( Quartz Crucibles)
2. Production Process and Microstructural Design
2.1 Electrofusion and Developing Techniques
Quartz crucibles are largely created via electrofusion, a procedure in which high-purity quartz powder is fed right into a rotating graphite mold within an electrical arc heater.
An electric arc generated between carbon electrodes thaws the quartz bits, which solidify layer by layer to form a smooth, thick crucible shape.
This method generates a fine-grained, homogeneous microstructure with marginal bubbles and striae, important for consistent warmth distribution and mechanical stability.
Alternative techniques such as plasma fusion and fire combination are made use of for specialized applications calling for ultra-low contamination or particular wall thickness accounts.
After casting, the crucibles undertake controlled cooling (annealing) to ease internal tensions and prevent spontaneous fracturing during service.
Surface area ending up, consisting of grinding and polishing, makes sure dimensional precision and lowers nucleation websites for unwanted condensation throughout usage.
2.2 Crystalline Layer Engineering and Opacity Control
A specifying attribute of modern-day quartz crucibles, especially those used in directional solidification of multicrystalline silicon, is the engineered internal layer structure.
Throughout production, the internal surface is usually treated to promote the formation of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon first heating.
This cristobalite layer works as a diffusion barrier, lowering direct communication in between liquified silicon and the underlying fused silica, thus decreasing oxygen and metal contamination.
Additionally, the visibility of this crystalline phase boosts opacity, improving infrared radiation absorption and promoting even more consistent temperature level distribution within the melt.
Crucible designers meticulously stabilize the density and connection of this layer to prevent spalling or breaking as a result of volume changes during stage transitions.
3. Practical Efficiency in High-Temperature Applications
3.1 Function in Silicon Crystal Growth Processes
Quartz crucibles are vital in the manufacturing of monocrystalline and multicrystalline silicon, acting as the primary container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped into liquified silicon held in a quartz crucible and gradually pulled up while rotating, enabling single-crystal ingots to develop.
Although the crucible does not straight speak to the expanding crystal, interactions between molten silicon and SiO ₂ wall surfaces bring about oxygen dissolution right into the thaw, which can affect provider life time and mechanical stamina in completed wafers.
In DS procedures for photovoltaic-grade silicon, large-scale quartz crucibles enable the controlled air conditioning of thousands of kgs of liquified silicon into block-shaped ingots.
Right here, layers such as silicon nitride (Si four N ₄) are applied to the inner surface to stop attachment and promote easy release of the strengthened silicon block after cooling down.
3.2 Degradation Mechanisms and Service Life Limitations
Despite their toughness, quartz crucibles degrade throughout duplicated high-temperature cycles because of numerous related mechanisms.
Viscous flow or contortion occurs at prolonged exposure above 1400 ° C, causing wall thinning and loss of geometric stability.
Re-crystallization of merged silica right into cristobalite creates interior stresses as a result of volume growth, possibly creating splits or spallation that infect the thaw.
Chemical erosion occurs from reduction reactions in between liquified silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), producing unpredictable silicon monoxide that runs away and damages the crucible wall.
Bubble development, driven by caught gases or OH teams, additionally compromises architectural stamina and thermal conductivity.
These deterioration pathways limit the number of reuse cycles and necessitate specific procedure control to take full advantage of crucible life-span and item yield.
4. Arising Advancements and Technological Adaptations
4.1 Coatings and Composite Modifications
To enhance performance and sturdiness, advanced quartz crucibles integrate functional coverings and composite frameworks.
Silicon-based anti-sticking layers and drugged silica finishings improve release qualities and lower oxygen outgassing throughout melting.
Some producers integrate zirconia (ZrO ₂) particles into the crucible wall surface to raise mechanical toughness and resistance to devitrification.
Research is ongoing into fully clear or gradient-structured crucibles made to enhance radiant heat transfer in next-generation solar heating system designs.
4.2 Sustainability and Recycling Obstacles
With raising demand from the semiconductor and photovoltaic or pv sectors, lasting use of quartz crucibles has actually become a top priority.
Spent crucibles contaminated with silicon residue are tough to reuse as a result of cross-contamination dangers, bring about substantial waste generation.
Initiatives focus on creating reusable crucible linings, boosted cleansing procedures, and closed-loop recycling systems to recuperate high-purity silica for additional applications.
As tool efficiencies require ever-higher product pureness, the role of quartz crucibles will remain to progress with advancement in materials scientific research and process engineering.
In recap, quartz crucibles represent a vital user interface between basic materials and high-performance digital products.
Their unique combination of purity, thermal strength, and structural layout makes it possible for the manufacture of silicon-based innovations that power modern computing and renewable resource systems.
